Results & Measurements

Understanding and working with your takeoff results.

Items Panel

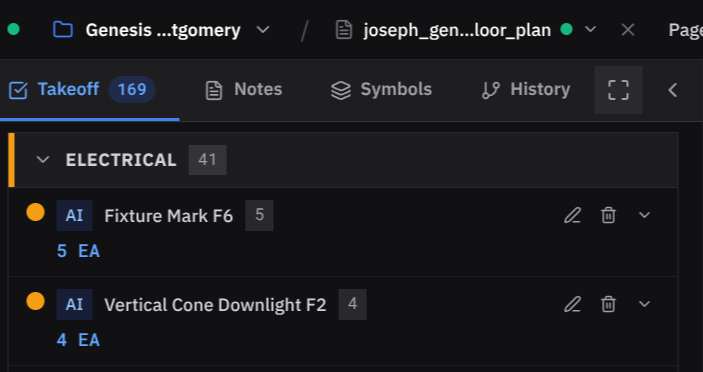

The Items tab in the Takeoff details panel on the right shows every measurement on the open sheet — AI-found and hand-drawn rows look exactly the same.

Accessing Items

  • Click Items in the Takeoff details panel (the tab shows a count badge)
  • If the panel is hidden, click ‹ Details to reopen it
  • After an AI run, View results jumps straight to Items

Items Organization

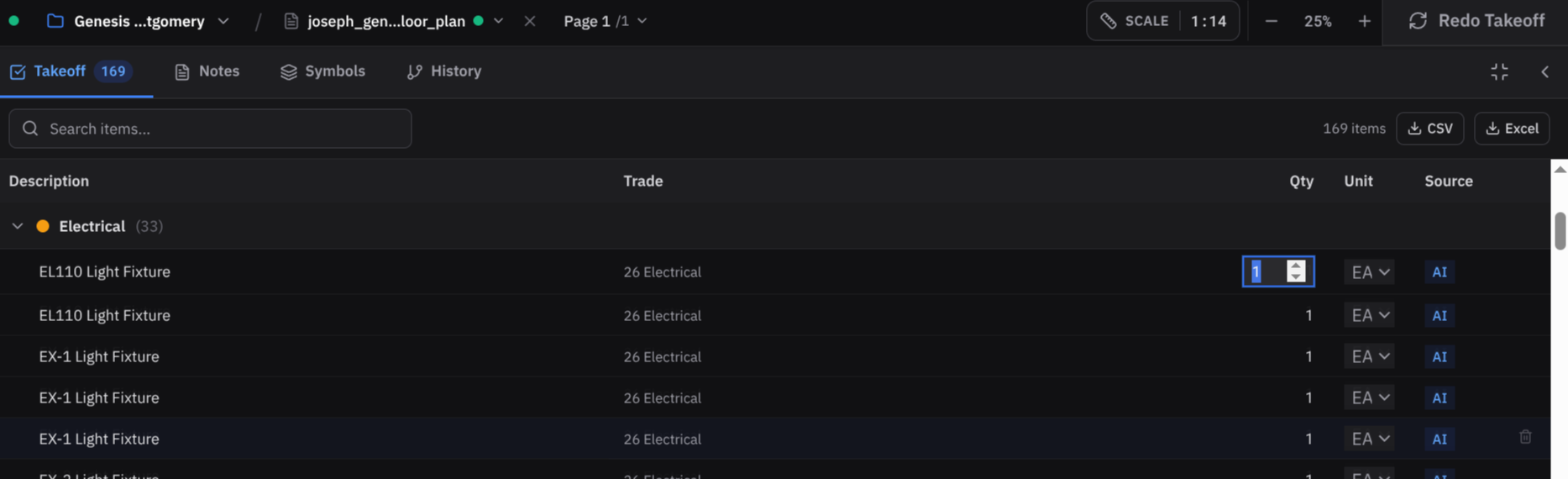

The header reads Page N · Current page with the sheet's trade tag. Below it, one row per item label shows:

ColumnDescription
SwatchThe item's colour on the plan
LabelWhat was counted or measured
TradeThe trade the item belongs to
Quantity"12 pieces" for counts, or the quantity and unit (LF, SF…)

Use Expand all / Collapse all to open or close every label. Below the current sheet, Page N measurements lists the other pages' totals with an Open page → link.

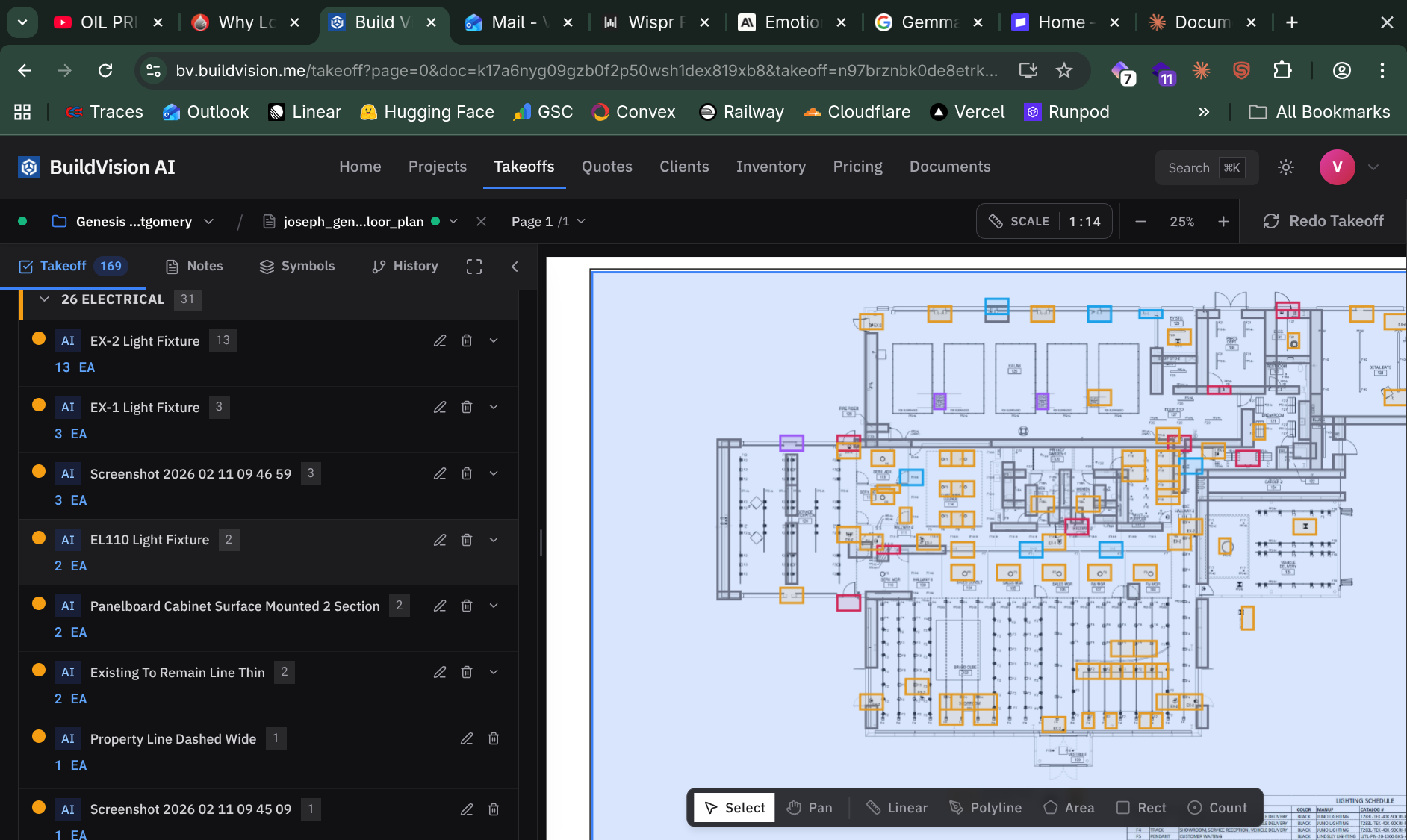

Expanded Items label and selected lighting symbol in the E320 demo
Use the label group to inspect individual measurements on the drawing.View full size (new tab)

Understanding Measurements

Measurement Types

BuildVision tracks three types of measurements:

Count (EA)

  • Individual items like doors, windows, fixtures
  • Shows the number of pieces
  • Example: "12 Duplex receptacle"

Linear (LF)

  • Length measurements like walls, trim, piping
  • Shows total linear feet/meters
  • Example: "450 LF interior wall"

Area (SF)

  • Square measurements like floor area, roofing
  • Shows total square feet/meters
  • Example: "2,400 SF floor area"

Lengths and areas need a usable scale. Count quantities do not depend on drawing scale. Check the scale readout in the command bar and see Scale Calibration.

Visible rows and counted totals

Saved AI rows appear without a customer approval step. A row marked not counted remains available to inspect but is excluded from eligible totals and exported quantities. Read the run outcome and the row's explanation before exporting. An eye toggle changes visibility only; hidden measurements still count when eligible.

Excluding a whole sheet removes its quantities from the takeoff.

Exclude a sheet from the takeoffLength 0:15

Open Page 2's sheet menu and choose Exclude from the takeoff. Its quantities leave the totals. Undo brings it back.

Interacting with Results

Select and Highlight

Click any row to select its measurements on the plan; the plan highlights them.

Item details

Selecting a shape opens Item details inline:

  • Label
  • Group, category & color
  • Quantity
  • Legend reference and Count name
  • Search more — find similar count objects on this plan with AI
  • Duplicate and Delete

Row actions

Each row has an Eye button (Hide on the plan) and a ⋯ menu with Edit, Delete all and Select all. The Eye at the top of the panel hides all detections so you can view the original plan.

Multi-Select

Hold Shift and click shapes, or drag on empty plan to box-select, then:

  • Delete them at once
  • Duplicate them with Ctrl/Cmd+D
  • Merge lines or areas with J

Legends and Notes

The Legends tab lists the legend symbols read from the sheet, with a thumbnail for each. From a row you can Count (arms the Count tool), Search plan or Locate on plan. Use This page / All to switch scope and Search legend items… to filter.

The Notes tab shows construction notes, including keynotes and specification notes, with links to related items where available. Items, Legends and Notes count badges follow the open page. Other-page notes and the complete legend catalog remain accessible inside their panels.

Comments

Drop a pin with the Comment tool (M) to start a thread on the plan. Threads are listed in the right panel, where teammates can Reply… and Resolve.

Exporting

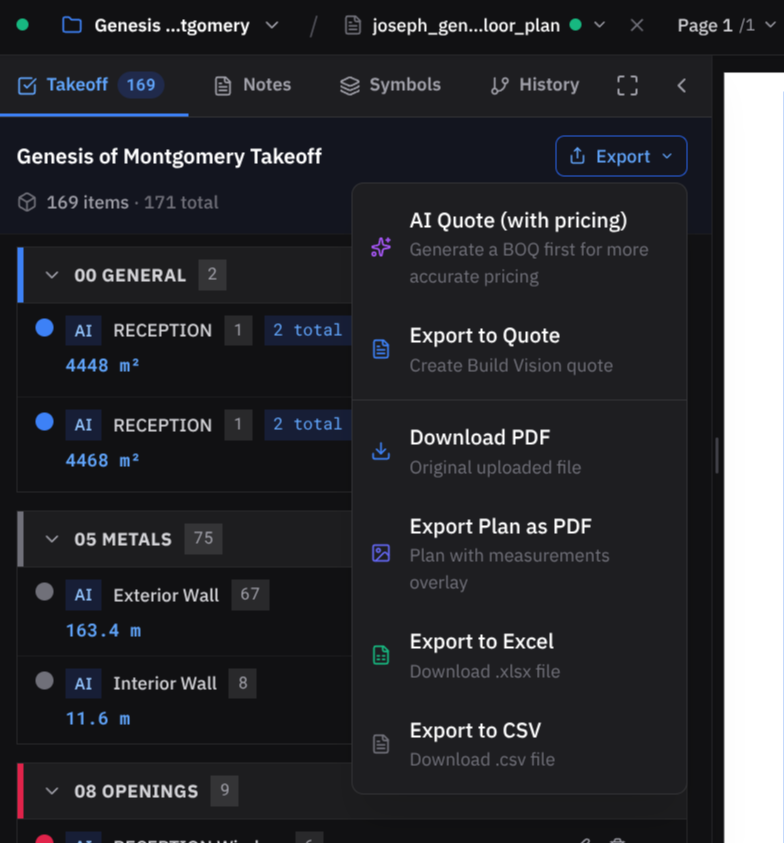

When the quantities look right, open Export ▾ in the header to download the Excel estimate, the takeoff PDF or a .zip package with both. See Exporting Data.

Accuracy Tips

Review AI measurements before export:

  • AI runs can include misses and false positives, even on clear plans
  • Always spot-check a few measurements
  • Use Search more on a symbol the AI undercounted

Verify scale on random measurements:

  • Pick a known dimension (like a door)
  • Measure it with the Linear tool (L)
  • If it's off, recalibrate and check the affected quantities

Never export results without at least a quick review. Even small scale errors compound into big quantity mistakes.
