Run an AI Takeoff in BuildVision AI
Step-by-step walkthrough for running an AI takeoff in BuildVision AI — from uploading a plan set to choosing trades and pages, running the takeoff, reviewing items and exporting.
Upload the drawing set, choose trades and pages, review measured quantities, then export or price the work. The examples use sample Riverside projects. Open any screenshot at full size to read its controls.
One plan from upload to priced quote: drag in a plan, the AI takes off every trade, measure by hand or ask the agent, see it in 3D, then the BOQ and the quote. Narrated, with captions for each step.
Step 1 — Upload the plan set
The Projects page has an upload box at the top. Drop a PDF plan set or a ZIP of PDFs into it, or click it to choose a file. For a PDF, BuildVision AI creates a project named after the file, uploads the set and opens the takeoff editor, so you can skip to step 3.

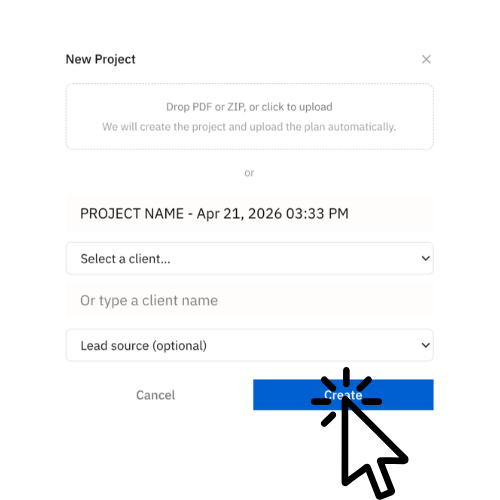

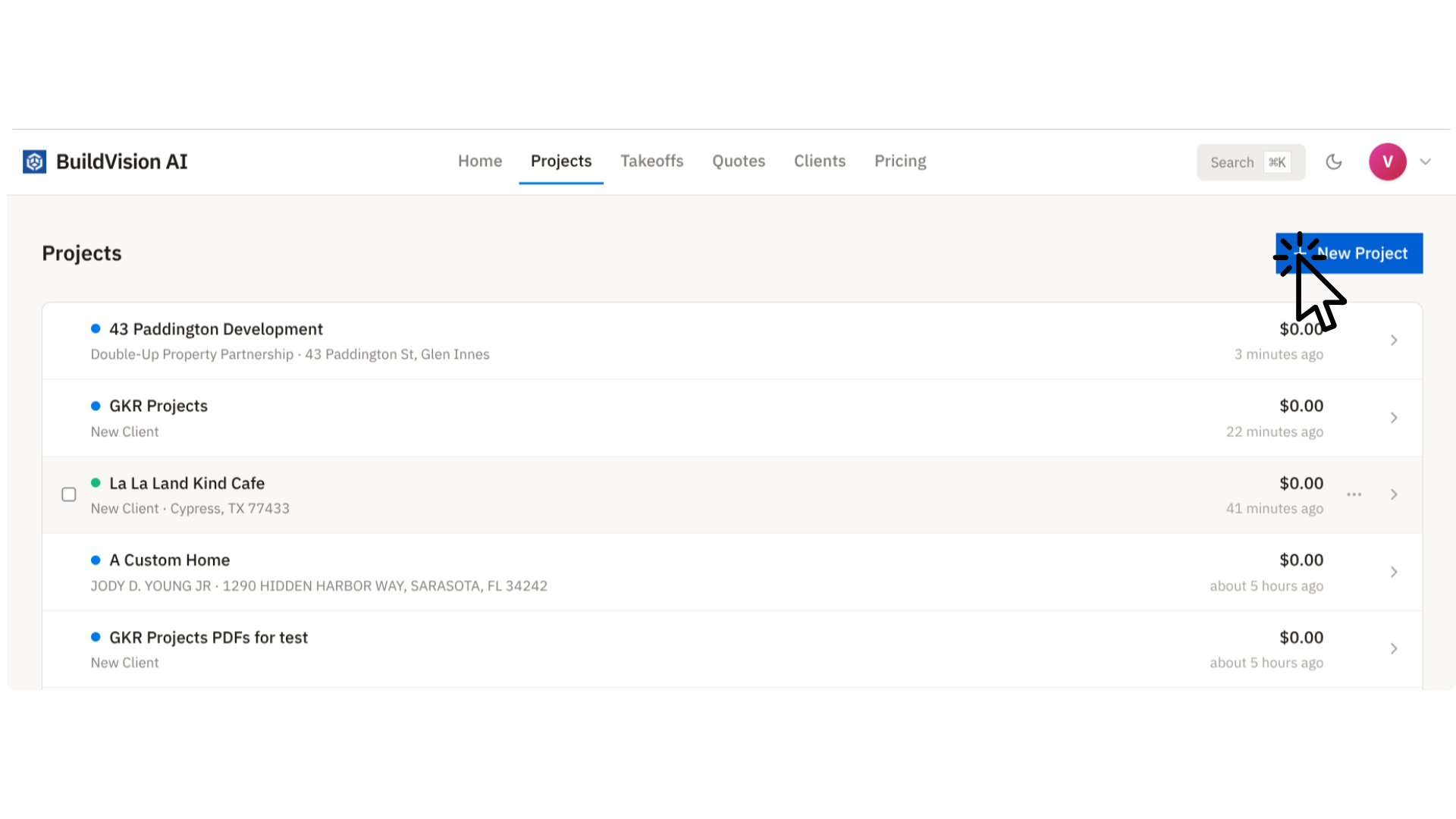

To set up the project first, click New project. Fill in Project name (Customer and Address are optional) and click Create project. Then click Upload documents under Project documents on the project page.
Tip: When your company's trades are set, the line above the upload box shows which trades the AI will measure. Click Change trades to pick different ones for this upload.
Step 2 — Open the plan

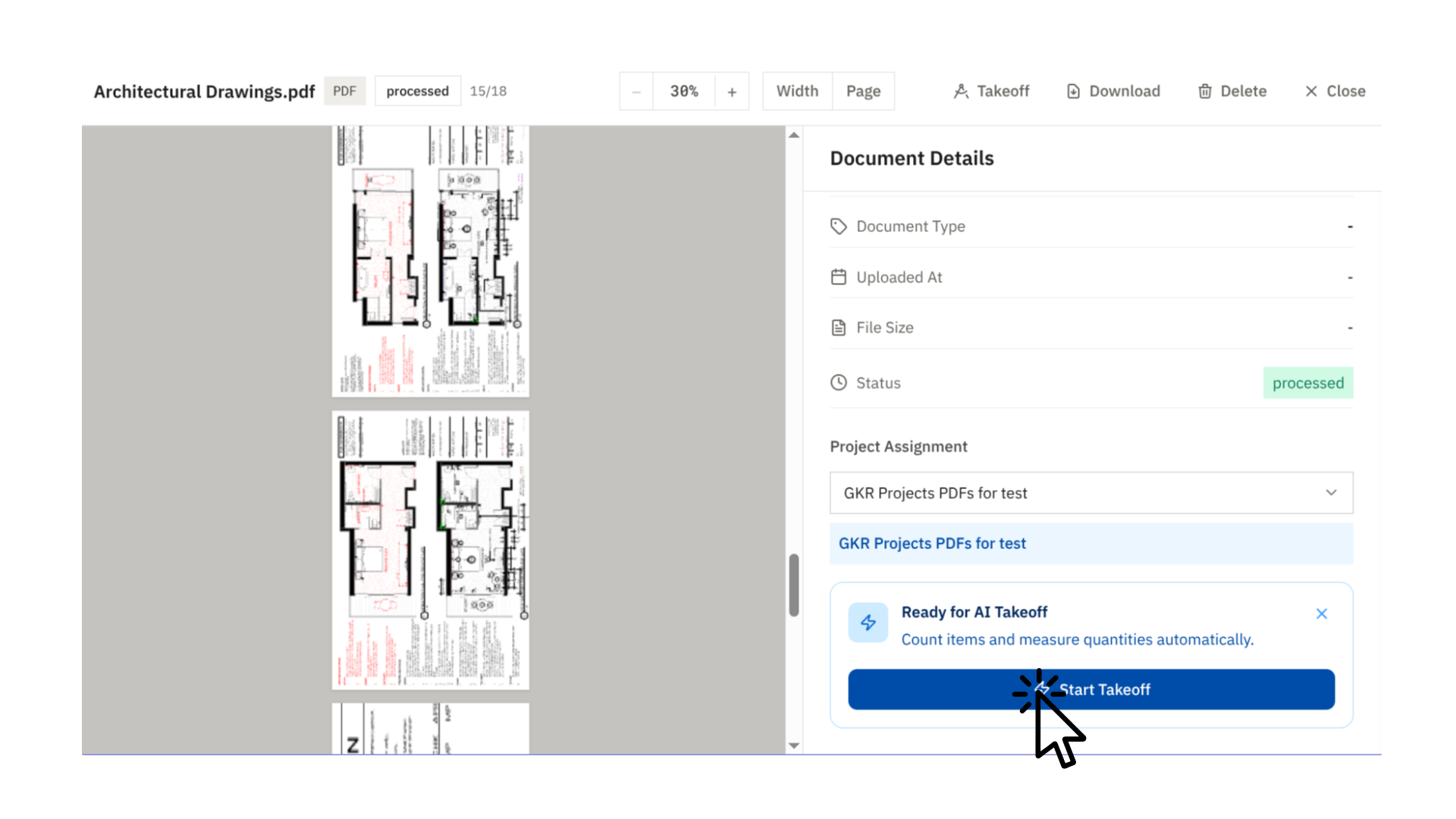

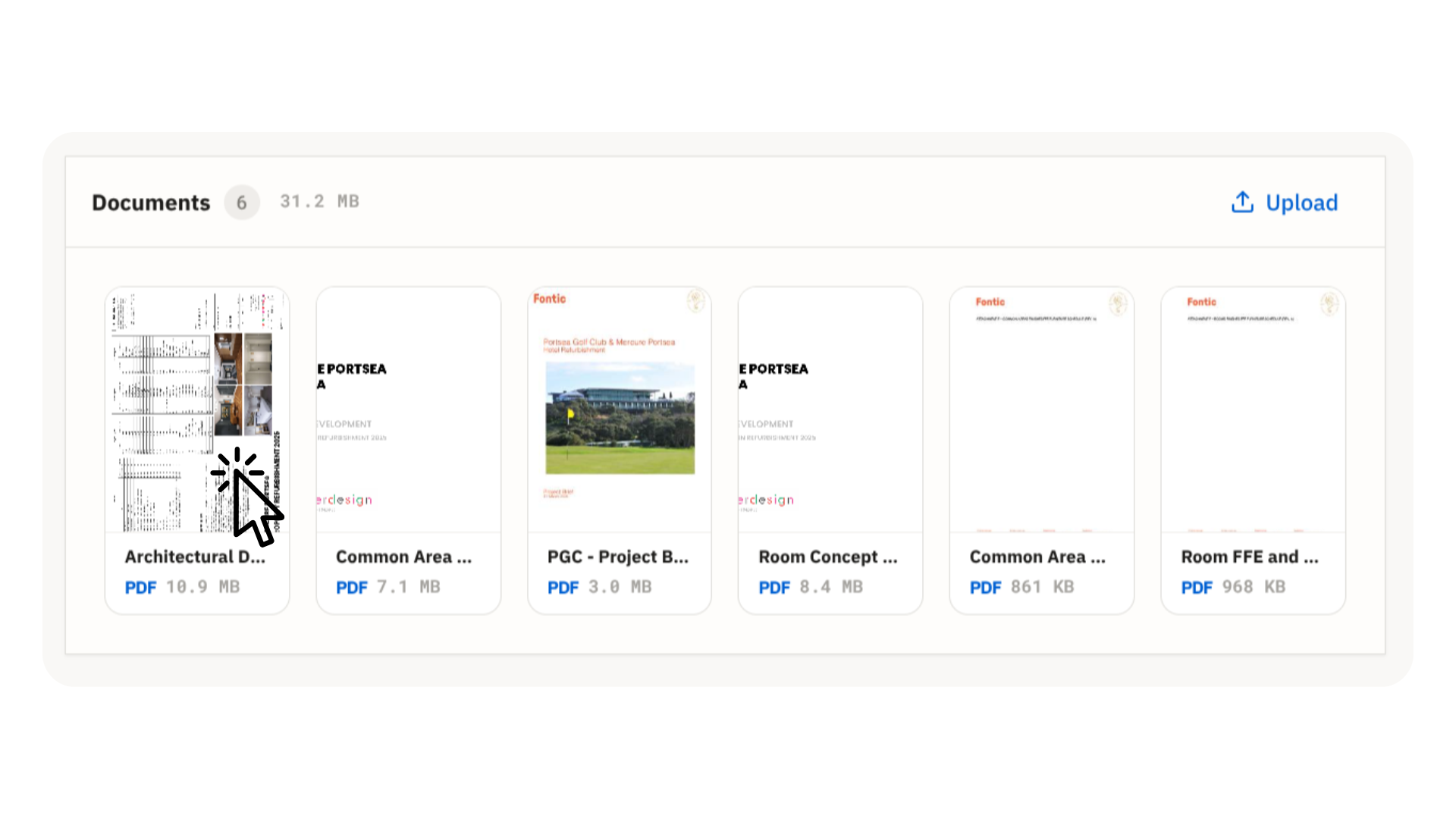

Coming back to a plan later, or uploaded it from the project page? Every upload is listed under Project documents. A drawing set shows its page count and status, such as Classifying PDF or Takeoff queued. Click Open takeoff.

Tip: When your company's trades are set, a new drawing set usually starts its AI takeoff on its own once the sheets are classified. The row then reads Takeoff queued, and the editor shows the run in progress (step 5).

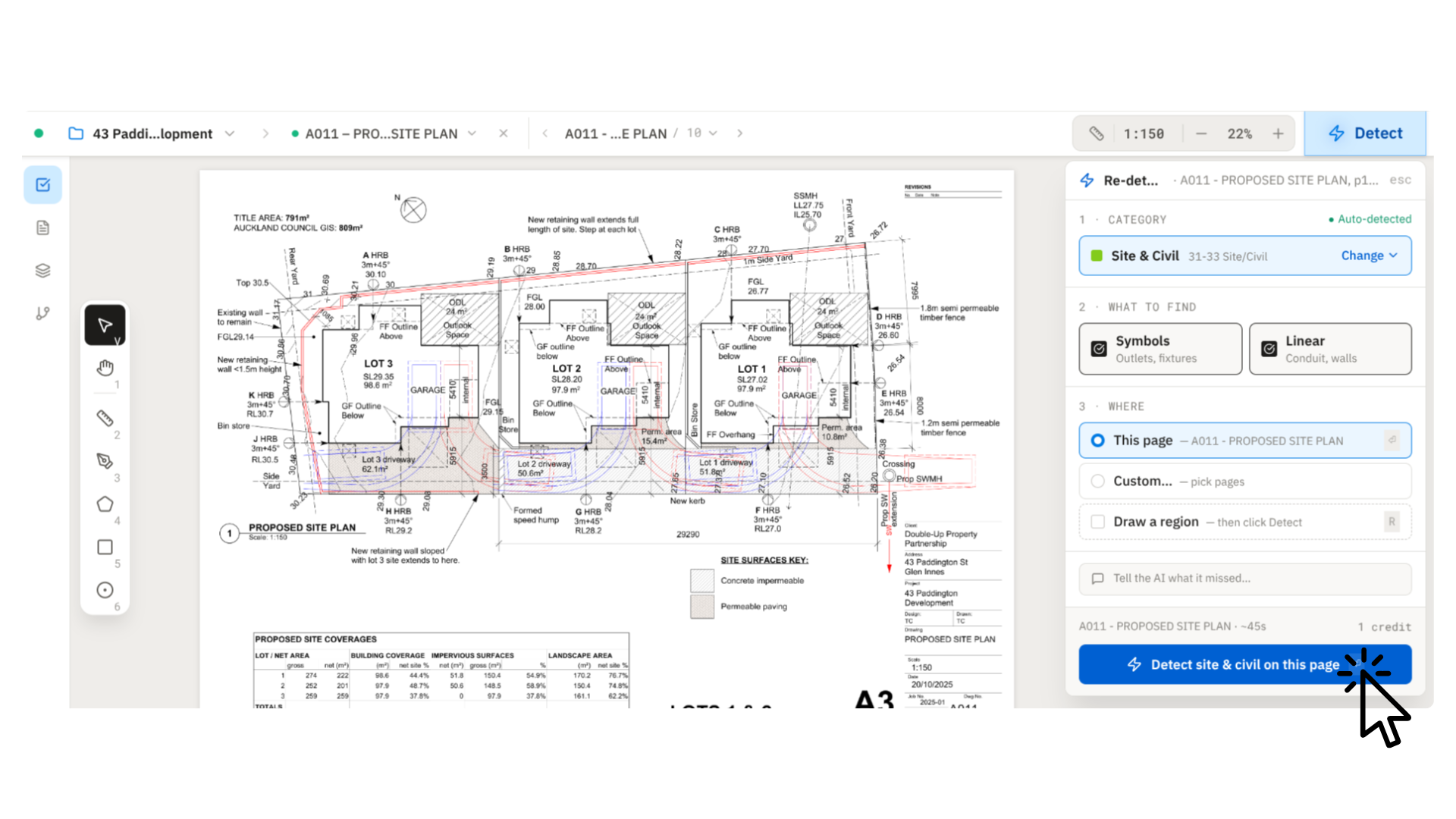

Step 3 — The takeoff editor

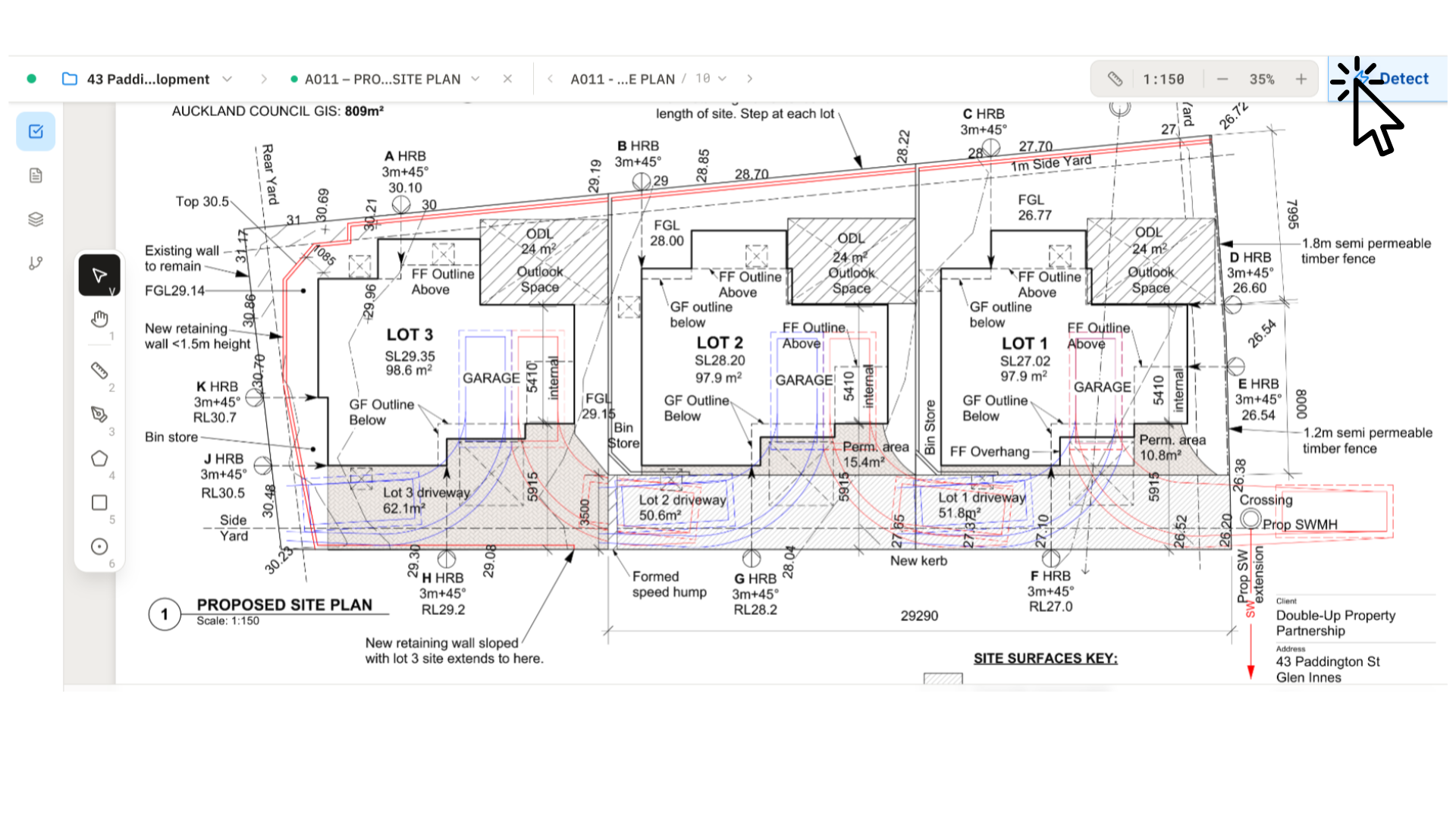

The plan fills the canvas. The header holds the sheet pager and the BOQ, Quote and Export buttons, and the drawing tools sit in the command bar at the bottom. The Takeoff details panel on the right has the Takeoff, Items and Legends tabs, plus Notes when the AI has read construction notes. It opens on Items, which lists what was measured on the current page.

Click the Takeoff tab. If the panel is hidden, click ‹ Details to bring it back.
Step 4 — Choose trades and pages, then run
The Takeoff tab shows the sheet count and lets you choose the scope:
-
Trade scope for this run — starts on Company default, the trades your workspace prices, shown under the select. Switch to General takeoff — all trades, or Choose trades and tick the ones you need; the change applies only to this run.
-
Pages to run — Entire drawing set, Current page, Page range or Choose specific sheets. Other pages keep their measurements.
-
On these sheets — Continue takeoff — keep what's there and add what's missing preserves your edits, manual rows and deletions. Fresh takeoff — replace AI rows on these sheets replaces AI rows on the selected sheets; manual rows stay. Check this choice before rerunning measured sheets.

Click Run AI takeoff. For one page or a selection, the button reads Run page 3 or Run 4 selected sheets instead.
Expand What AI measures for these trades to see the selected trade's quantities and required sheet evidence. Engine, Beta and Manual describe the available support; Manual work needs the drawing tools. See trade coverage.
First run in a new workspace: the Takeoff tab first asks Which trades do you price? A workspace admin picks General contractor — all trades or Specific trades and clicks Save and run takeoff. That becomes the company default, which you can change in Settings.
Step 5 — Follow the run
The run card shows the current stage with a Step n/4 chip:
- Downloading, then Classifying sheets — opens the PDF and labels every sheet
- Reading legends — reads the legend symbols and their names
- Measuring — counts symbols, traces runs and measures areas sheet by sheet
- Finalizing — reconciles document-wide quantities
Under the stage, a line says what the AI is doing right now, and a short log lists recent activity.

The run keeps going if you close the page. Reading a large set can take time before the first sheet finishes; use the stage and activity messages to follow it. During Measuring, the finished-sheet count and progress bar show coverage. Stop takeoff opens a confirmation before ending the run; measurements already saved stay on the plan.
Read the outcome before pricing. A finished run can still report sheets or quantities it could not measure. Follow those page links, resolve the reason shown, or complete the missing scope manually.
When it finishes, use View results or Open measurements to inspect the saved items. Create quote is available when the result can be quoted; BOQ in the header builds a bill of quantities.
Step 6 — Review the items
View results opens the Items tab for the current page. Each item label is a group with its colour and trade; expand it to see every measurement. AI results are saved directly; there is no Accept/Reject queue for takeoff detections. A saved row marked not counted remains visible but does not contribute to eligible totals. Resolve its stated measurement issue before relying on that quantity.

Selecting a row highlights its mark on the plan, and its ⋯ menu holds more actions. Click a shape on the plan to open Item details. Fix the label, group or quantity there, or use Search more to find similar symbols with AI. The Legends tab lists the symbols the AI read. Items, Legends and Notes badges follow the current page; All in Legends lets you browse the complete catalog. Hiding a label only hides its marks on the drawing, so it does not remove it from totals.
Step 7 — Export or quote
Open Export ▾ in the header when the quantities look right.

- Download takeoff PDF — every marked-up sheet plus a quantity summary
- Download Excel (.xlsx) — a workbook with Summary and Line Items sheets
- Download takeoff CSV — one row per measurement
- Create quote — a quote draft from the takeoff (the Quote button does the same). Once a quote exists, the menu offers Create another quote and Open Q-… instead
- Include room areas — also quote room areas such as BEDROOM 1; off by default
- Share project — invite teammates to the project
BOQ in the header builds a bill of quantities from the takeoff. When enabled in Settings → Profile, completion emails go to the person who started the run. Downloads and quote creation follow the workspace's plan and permissions; if access is gated, follow the explanation shown in the app.
